SuperChassis CSE-216BE1C4-R1K23LPB, 2U 24 x 2.5 inch, Hybrid SAS3/SATA3 4 NVME, Dual PSU

SuperChassis CSE-216BE1C4-R1K23LPB, 2U 24 x 2.5 inch, Hybrid SAS3/SATA3 4 NVME, Dual PSU

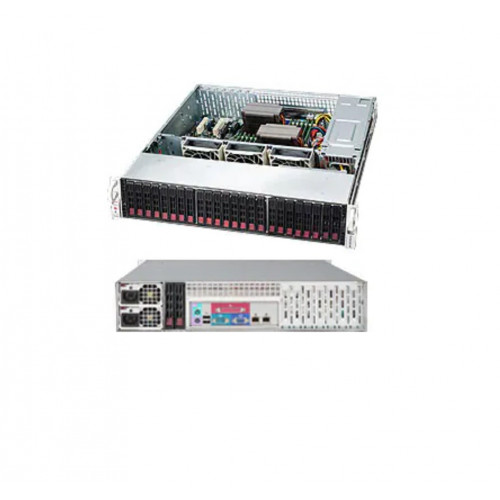

Supermicro 2U chassis, with front access hot swappable 24 x 2.5" hard drives supported via Expander backplane.   Supports upto 24 x SAS3/SATA3 drive and upto 4 NVME (U.2) drive.

Key Features

1. 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
   Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
2. 24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay
3. 24-port 2U SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
4. 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
5. 7 low-profile expansion slot(s)
6. 3 x 8cm high-performance PWM fan(s), Optional 5 x 6cm 4pin high performance fan(s)

Contact us for configuration options, we can build and test with your choice of motherboard, CPU, RAM and storage devices.
