1U UP WIO Superserver with upto 10 hot-swap 2.5" NVMe / SAS / SATA bays

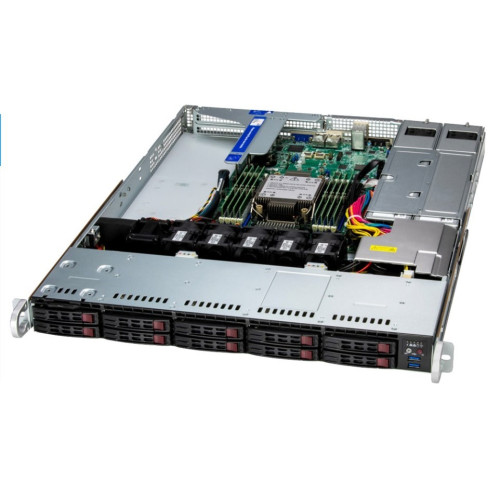

Supermicro SuperServer SYS-112B-WR 1U Server built upon X14SBW-F system board with a Single Intel Xeon 6500/6700 Series CPU, 8 DIMM Slots, 3 PCIe slots and redundant power supplies.

Key Applications

• Virtualization
• Networking Appliance
• Cloud Computing
• Data Center Optimized
• Database/Storage
• Storage Headnode
• Web Cache, CDN, Video Streaming
• AI Inference

Key Features :

Single Intel® Xeon® 6 Processor

8 DIMM slots supporting up to 2TB of memory

Dual LAN with 1GbE with Intel®I210

1 dedicated IPMI LAN

Tool-less, Top-loading riser design support 3 PCIe 5.0 Expansion (2x FHFL + 1x LP).

8 x Native SATA drives supported, with option for up to 8 PCIe 5.0 NVMe drives or 10 SAS drives.
Trusted Platform Module (TPM) 2.0 onboard.

2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)

Price shown is for typical minimum configuration and is therefore meant only as a guide price, please contact us for customer specific configuration pricing and current lead time.
