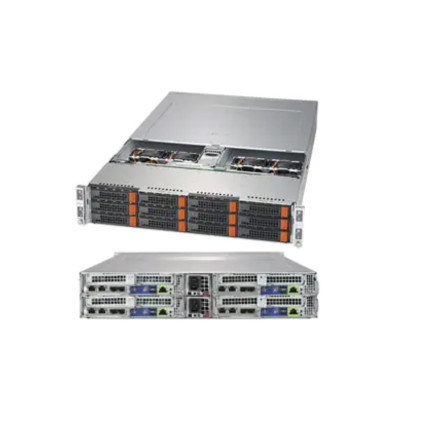

6029BT-DNC0R BigTwin SuperServer Dual node

** Nutanix OEM Version in stock **

Supermicro BigTwin SuperServer SYS-6029BT-DNC0R 2U dual node system, based upon X11DPT-B system board with 6 x SAS3 or 3 x U.2 NVME & SAS3 drive per node and 2 x m.2.

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)^‡

2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM^††

3. 2 PCI-E 3.0 x8 slot, 1 PCI-E 3.0 x16, 1 SIOM card support (flexible networking)
    Note: must bundle with Network card

4. 6 SAS3 or 3 NVMe + 3 SAS3 Hot-swap 3.5" drive bays, 2 internal M.2 NVMe/SATA slots

5. SAS3 support via Broadcom 3008; IT mode

6. IPMI 2.0 + KVM with dedicated LAN

7. Video via Aspeed AST2500 BMC

8. 4 Heavy duty 8cm PWM fans with air shroud

9. 2200W Redundant Power Supplies Titanium Level (96%)

Other configurations available from stock.  Call us on 01256 808555 for options.
