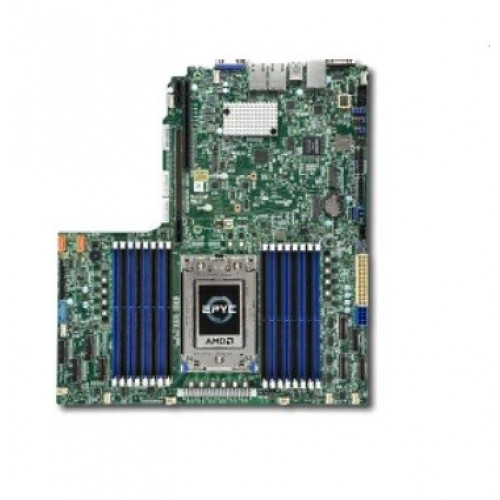

• Super H11SSW-NT AMD EPYC NVME 10Gbase-T motherboard

Super H11SSW-NT AMD EPYC NVME 10Gbase-T motherboard

  • £500.43 (ex. VAT)

  • Brand: Supermicro
  • Product Code: MBD-H11SSW-NT-NEW
  • Condition: New
  • Availability: Out Of Stock

Super H11SSW-NT AMD EPYC NVME 10Gbase-T motherboard

Supermicro proprietary WIO form factor single socket AMD EPYC Motherboard model H11SSW-NT with integrated NVME controller and 10Gbase-T NIC.  Call for system configurations to include this board.

Key Features
1.  Single AMD EPYC™ 7001/7002* Series Processor (*AMD EPYC 7002 series drop-in support requires board revision 2.x)
2.  2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)
3.  Expansion slots:
1 PCI-E 3.0 x32 Left Riser Slot
1 PCI-E 3.0 x16 Right Riser Slot
M.2 Interface: 2 PCI-E 3.0 x2
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
4. 12 NVMe via SlimSAS, 4 NVMe or 16 SATA3 via SlimSAS, 2 M.2, 2 SATA3
5.  2x 10GBase-T LAN Ports via Broadcom BCM57416, 1 Realtek RTL8211E PHY (dedicated IPMI)
6.  ASPEED AST2500 BMC graphics
7.  Up to 7 USB 3.0 ports (4 rear + 2 front + 1 Type A)
8.  6 PWM 4-pin Fans with tachometer status monitoring

Chassis optimized for this server board include (But not limited to) 2U SC213AC8-R1K23WB
Preconfigured servers with H11SSW-NT included :
AS -1113S-WN10RT, AS -2113S-WN24RT, AS -2113S-WTRT

Call for options on any of those bundles.
