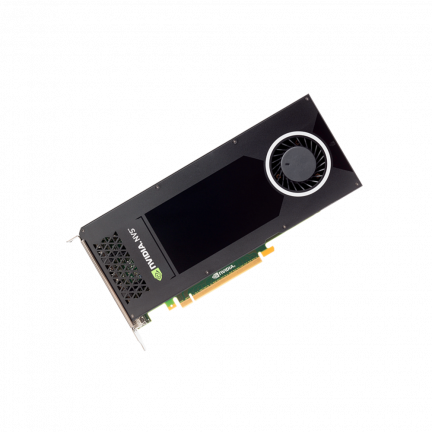

Nvidia NVS 810 Graphics Card

Nvidia NVS 810 Graphics Card

The NEW NVIDIA NVS 810 graphics board from PNY delivers exceptional display connectivity, cost-effective scalability, and image management capabilities that make it easy to drive any kind of multi-display digital signage setup. It’s the first of its kind to offer eight display outputs, combined with the world’s most advanced GPU architecture—all in a single-slot form factor. NVS 810 is also ideal for creating dense signage solutions, delivering the uncompromised performance and reliability required to deploy demanding content in mission-critical signage installations.

Eight mini-DisplayPort 1.2 connectors on the NVIDIA NVS 810 are capable of driving UHD 4K displays at 60 Hz. Plus, it provides advanced features like multi-streaming and stream cloning that enable extremely efficient cable management and display flexibility in complex installations. Key NVIDIA features like bezel correction, synchronization across 8 displays, Warp & Blend, and Mosaic make digital signage easy.

• CUDA Cores 1,024 (512 per GPU)
• GPU Memory 4GB DDR3 (2GB per GPU)
• Memory Interface 128-bit (64-bit per GPU)
• Memory Bandwidth 28.8GB/s
• System Interface PCI Express 3.0 x16
• Display Connectors 8 mini-DisplayPort
• Mini-DP to DP Adapters 8 included
• DisplayPort 1.2 Yes
• Maximum Number of Displays 8
• NVIEW Yes
• Mosaic Mode Yes (Windows 10, 8.1, 8, 7, and Linux)
• Thermal Solution Ultra-quiet active fansink
• Form Factor 4.40” H x 7.80” L, Single Slot
• Warranty 3 Years

PNY Part Number VCNVS810DP-PB, EAN 3536403346270
