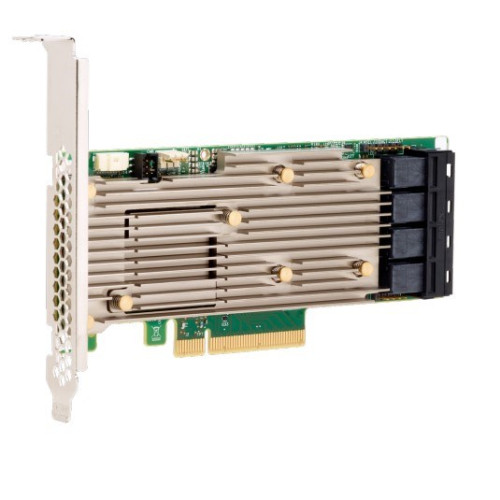

9460-16i Tri Mode NVME SAS SATA PCIe RAID Controller

Key Features • Tri-Mode storage interface ports − SFF-8680 bay − x1 SAS − x1 SATA − x2 SAS (multi-link) − Two x1 SAS (dual port using MPIO) − SFF-8639 (U.2) bay − x2, x4 NVMe • Supports 12, 6, and 3 Gb/s SAS and 6 and 3 Gb/s SATA data transfer rates Up to 8 storage interface PCIe links. Each link supports x4 or x2* link widths up to 8.0 GT/s (PCIe 3.0) per lane • SFF-9402 compliant, connector pin-out • SFF-8485 compliant, SGPIO • RAID levels 0, 1, 5, 6*, 10, 50, and 60* • CacheVault™ flash back-up at power fail − Supports bad block management • PCIe 3.1 host interface − Supports x8, x4, x2, and x1 PCIe lanes at a transfer rate up to 8.0 GT/s per lane, full duplex − Lane and polarity reversal − Variable PCIe bandwidth negotiation
