• Microcloud E3 v5/v6 Single CPU Motherboard

Microcloud E3 v5/v6 Single CPU Motherboard

  • £218.78 (ex. VAT)

  • Brand: Supermicro
  • Product Code: MBD-X11SSD-F
  • Condition: Refurbished
  • Availability: 8

Microcloud E3 v5/v6 Single CPU Motherboard

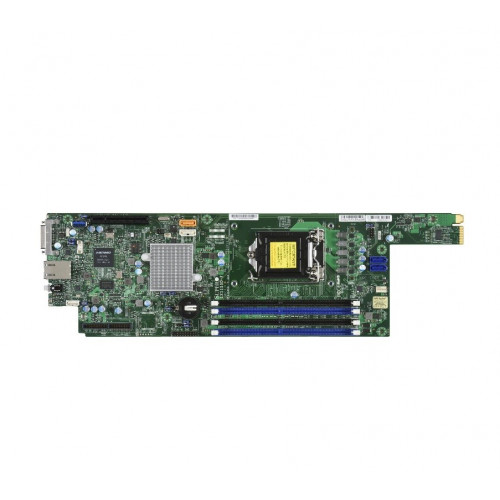

Supermicro super X11SSD-F motherboard for Microcloud SYS-5039MS-H8TRF. Single socket E3 v5/v6 CPU supported.


Key Features

  1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5/v6 Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
  2. Intel® C236 chipset
  3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
  4. Expansion slots: 1 PCI-E 3.0 x8 (micro low-profile) or 1 PCI-E 3.0 x4 (in x8)
  5. 4 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
  6. I/O: 1 VGA, 1 COM, TPM header
  7. 1 SuperDOM with built-in power
  8. 1 Dedicated IPMI LAN port
  9. 3 USB 3.0 (2 via header, 1 Type A

Will ship on metal tray, with AOC-CGP-I2 NIC and SNK-P0047PS+ heatsink attached unless otherwise requested.

8
