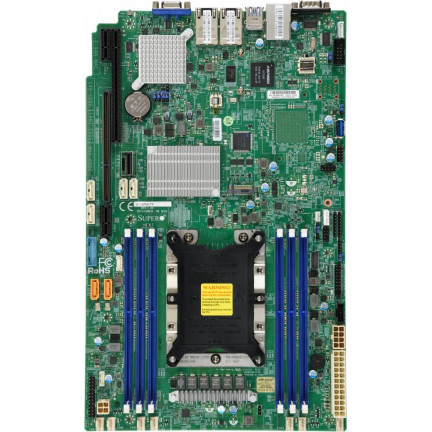

X11SPW-TF Motherboard

X11SPW-TF Motherboard

Supermicro part code MBD-X11SPW-TF Single Socket Scalable CPU motherboard with Dual 10Gbe LAN, M.2 storage interface and 10 SATA3 drive controller.

Key Features

1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP
2. Intel® C622 chipset
3. Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots
4. M.2 NGFF connector
   M.2 Interface: PCI-E 3.0 x4 and SATA
   Form Factor: 2280, 22110
   Key: M-Key
   Double Height Connector
5. Expansion slots:
   1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x32 Left Riser slot
6. 2 10GbE LAN ports
7. 10 SATA3 (6Gbps) via C622
8. I/O: 1 VGA, 2 COM, TPM header
9. 2 SuperDOM with built-in power

Model X11SPW-TF
