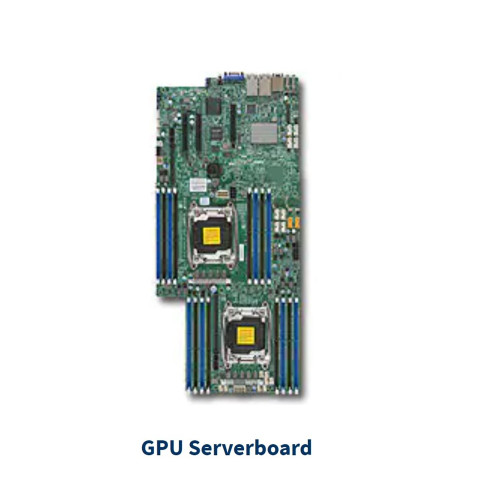

Super MBD-X10DRFF-CTG Dual X10 Motherboard

Super MBD-X10DRFF-CTG Dual X10 Motherboard

Supermicro motherboard for various server chassis.  Dual Socket X10 family, supporting 2 x E5-2600 v3/v4 CPU, 16 DIMM slots, Dual 10Gbase-T NIC and 3008 SAS controller.  Proprietary format.

Key Features

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600
v4†/ v3 family; UPI up to 9.6GT/s
Intel® C612 chipset
Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz; 16 DIMM slots
1 PCI-E 3.0 x32 right riser slot, 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, & 1PCI-E2.0 x4 (in x8) slots
Intel® X540 Dual port 10GBase-T
10 SATA3 (6Gbps); RAID 0, 1, 10
8 SAS3 (12Gbps) ports w/ Broadcom® 3008 controller; SW RAID 0,1,5,6,10,50,60,
JBOD support (IT Mode)
Integrated IPMI 2.0 and KVM with Dedicated LAN
2 USB 3.0 ports (2 rear)

As used in SYS-F628G2-FC0PT+ / SYS-F628R2-FC0PT+ / SYS-F628G3-FC0PT+
SYS-F618H6-FTPTL+ / SYS-F628R3-FC0PT+ / SYS-F618H6-FTPT+
